Binary counter CE, max. 72x72x125 mm | TS-0005

Binary counter CE, max. 72x72x125 mm | TS-0005

Binary counter CE, max. 72x72x125 mm | TS-0005

About


TS-0005 is an intelligent digital counter with double rows 5 digits PV and SV display.
Output delay time range: 1S-99999S



TS-0005 Counter technical data:

1) Input mode:

Proximity Switch, Photoelectrie Switch, HALL Switch,

Standard Voltage Switch, ON/OFF external signal.

2) Alarm function (2 alarms): Deviation high and deviation low alarm.

3) Alarm output relay: 3A/250V (resistance)

4) Output delay time range: 1S-99999S

5) Power supply: 100-240VAC (50/60HZ)

6) Display: 5 pcs 7 segments LED display Process value and setting value respectively

7) Clear up (reset "0") methods:

a. Press the clear up key

b. External signal

c. Automatioc clear up, delay time setting is available.

8) Also can be used as length counter.

9) Working environment: Temperature 0-50 C; Humidity < 85%

10) Dimensions (width x height):

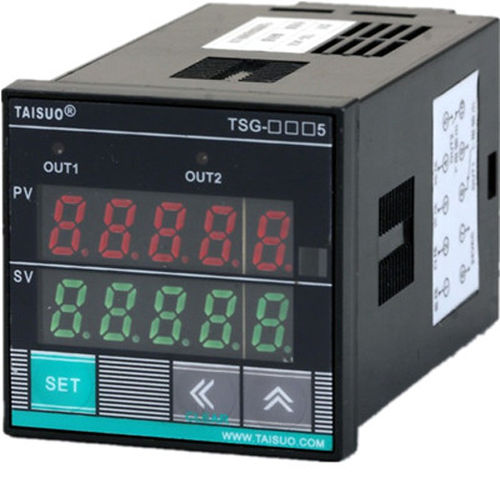

TSG-0005: 48 x 48mm
TSE-0005: 48 x 96mm
TSD-0005: 72 x 72mm

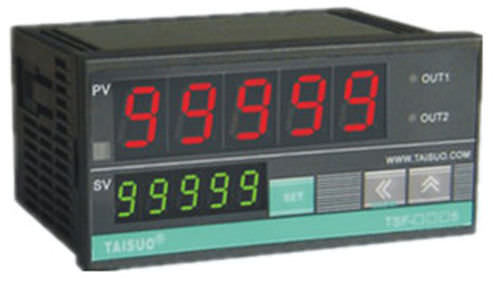

TSF-0005: 96 x 48mm



PARAMETERS

Parameter Name Parameter Value
Type
binary
Display
digital
Technology
electronic
